Description

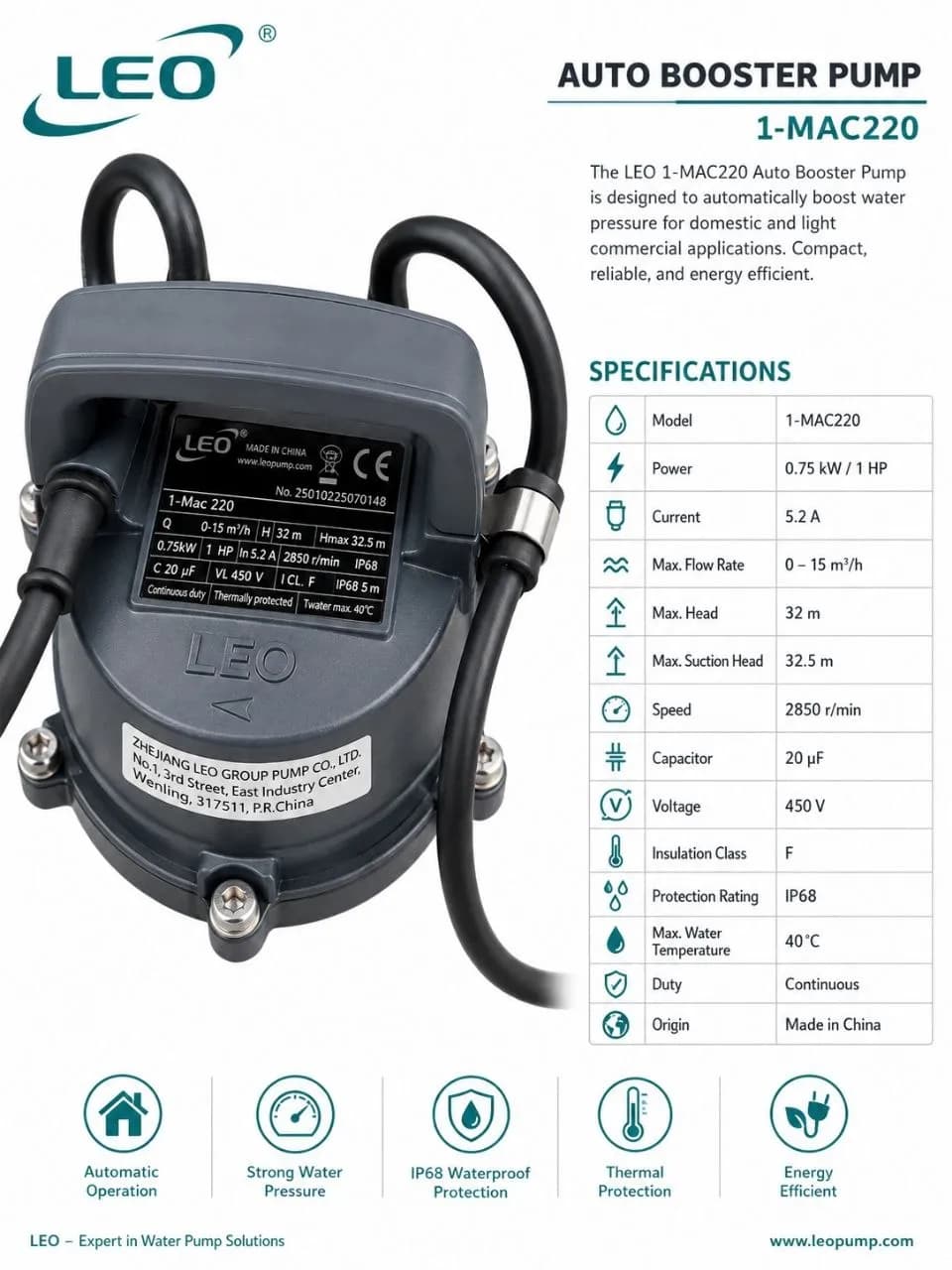

Model: 1-MAC220 The LEO 1-MAC220 Auto Booster Pump is designed to automatically boost water pressure for domestic and light commercial applications. Compact, reliable, and energy efficient. SPECIFICATIONS Parameter Value Model 1-MAC220 Power 0.75 kW / 1 HP Current 5.2 A Max. Flow Rate 0 – 15 m3/h Max. Head 32 m Max. Suction Head 32.5 m Speed 2850 r/min Capacitor 20 μF Voltage 450 V Insulation Class F Protection Rating IP68 Max. Water Temperature 40°C Duty Continuous Origin Made in China KEY FEATURES Automatic Operation – Starts and stops automatically based on water demand Strong Water Pressure – Delivers powerful and consistent pressure IP68 Waterproof Protection – Fully submersible and highly protected Thermal Protection – Built-in protection against overheating Energy Efficient – Optimized for low power consumption TECHNICAL DETAILS Flow Range: 0–15 m3/h Head Range: 0–32 m Max Head: 32.5 m Speed: 2850 rpm Insulation Class: F Protection Class: IP68 Capacitor: 20 μF Voltage: 450 V Price=28500
